MFC-1250

Image of an MFC-1250 antenna
Image of an MFC-1250 antenna

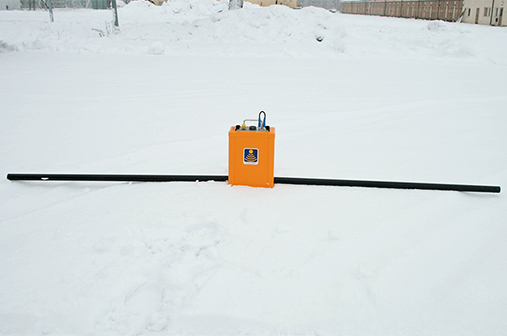

Photo of a mounted MFC-1250 antenna
Another photo of a mounted MFC-1250 antenna
Antenna

MFC-1250

  • Features
  • Configurable multi-frequency unshielded antenna
  • Technical specifications
  • Dimensions (main electronics) - 195x135x255mm
  • Weight (main electronics) - 2.25kg
  • Weight (long antenna element) - 1.1kg
  • Weight (short antenna element) - 0.8kg
  • Frequency - 20, 25, 33.3, 50, 100 MHz
  • Penetration depth - up to 120m
  • Resolution target size in low conductive soil - dependant on frequency
  • Range - from 256ns up to control unit maximum
  • HSS code - 85291095
  • Non-stock product, long delivery time, up to 16 weeks
  •
    • Datasheet
+
